Deep Dive into C# Boxing and Unboxing

Table of Contents

• Understanding the Fundamentals

• Memory Management Deep Dive

• Practical Implementation

• Performance Optimization

• Best Practices

• Advanced Scenarios

Understanding the Fundamentals

Here's a confession: I wrote C# for three years before I truly understood the performance implications of boxing and unboxing. Sure, I knew the basic concept, but I had no idea how much it was costing me in real applications. Once I learned to spot boxing allocations, I was shocked at how pervasive they were in seemingly innocent code.

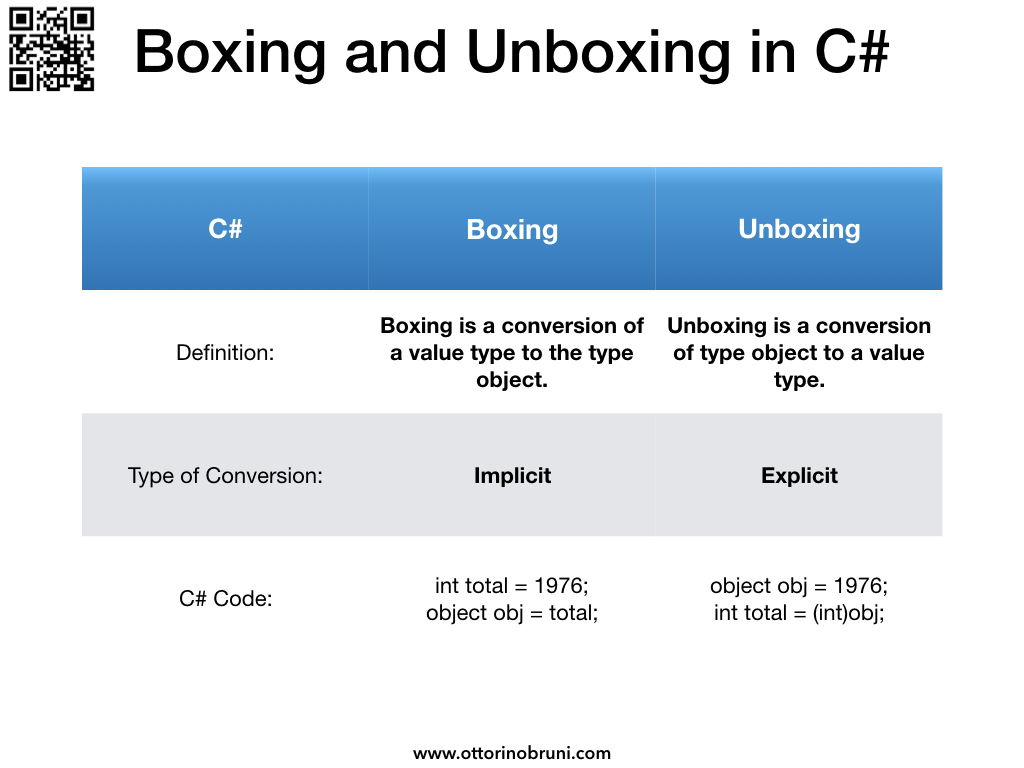

Boxing and unboxing are fundamental to how .NET handles the divide between value types (like int, struct) and reference types (like string, class). But here's the thing-every time you box a value, you're making a secret allocation on the heap. And in high-performance applications, those "secret" allocations can kill you.

What Actually Happens During Boxing?

Let me paint you a picture of what's happening under the hood. When you box a value type, the runtime doesn't just wrap it-it performs a full memory allocation:

// This looks innocent enough...
int number = 42;                // 4 bytes on the stack
object boxed = number;          // 24+ bytes allocated on the heap!

// What actually happens:
// 1. Allocate new object on heap (12 bytes overhead + 4 bytes for int)
// 2. Copy the value from stack to heap
// 3. Return reference to the boxed object
// 4. The stack variable 'number' is unchanged

I remember profiling an application where we were processing thousands of temperature readings per second. Each reading was getting boxed when we added it to an ArrayList. The garbage collector was going crazy. Switching to List<double> eliminated the allocations entirely and improved performance by 300%.

The Hidden Cost of Unboxing

Unboxing isn't free either. It's not just a type cast-it's a runtime type check followed by a memory copy:

object boxed = 42;              // Boxing allocation
int unboxed = (int)boxed;       // Runtime type check + memory copy

// What happens during unboxing:
// 1. Check if boxed object is actually an int
// 2. If wrong type, throw InvalidCastException
// 3. Copy 4 bytes from heap back to stack
// 4. The original boxed object remains on heap (GC pressure)

A Real-World Boxing Nightmare

I once inherited a reporting system that was mysteriously slow. After some profiling, I discovered this innocent-looking code was the culprit:

// Looks harmless, right? WRONG!
ArrayList values = new ArrayList();
for (int i = 0; i < 1000000; i++)
{
    values.Add(i);  // Boxing allocation on every iteration!
}

// Each Add() was boxing the integer, creating 1 million heap allocations
// The fix was simple but the performance difference was dramatic:
List<int> values = new List<int>();
for (int i = 0; i < 1000000; i++)
{
    values.Add(i);  // No boxing - direct storage
}

Memory Management Deep Dive

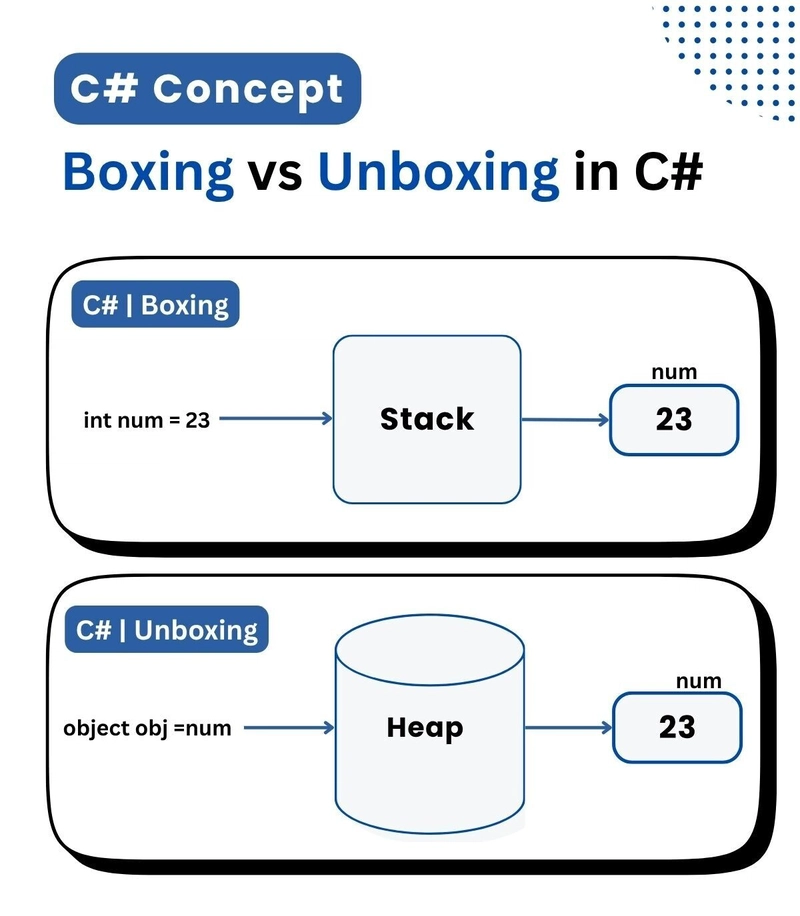

The Stack vs Heap Reality Check

Here's where things get really interesting from a performance perspective. The difference between stack and heap isn't just academic-it has real-world implications that I've seen impact production systems.

graph LR
    A[Stack Memory<br/>Fast, Limited, Auto-cleanup] -->|Boxing<br/>Heap Allocation| B[Heap Memory<br/>Flexible, GC'd, Slower]
    B -->|Unboxing<br/>Type Check + Copy| A
    style A fill:#90EE90,stroke:#333,stroke-width:2px
    style B fill:#FFB6C1,stroke:#333,stroke-width:2px

Stack Memory: The Speed Demon

Stack allocation is incredibly fast-it's literally just moving a pointer. I've measured this: stack allocation is typically under 1 nanosecond, while heap allocation can be 10-100x slower depending on GC pressure.

// Stack allocation - blazing fast
int stackValue = 42;        // ~0.1ns
double anotherValue = 3.14; // ~0.1ns

// The stack maintains perfect locality - values are physically adjacent
struct Point { public int X, Y; }
Point p1 = new Point { X = 1, Y = 2 };  // Still on stack!

Why Stack is Fast:

• No allocation overhead: Just increment the stack pointer
• Perfect memory locality: Values are adjacent in memory
• Automatic cleanup: When scope ends, stack pointer just moves back
• No GC pressure: Garbage collector never touches the stack

Heap Memory: Flexible but Expensive

Heap allocation is where boxing gets expensive. Every heap allocation has to:

1. Find free space: The allocator searches for available memory
2. Initialize object header: 12-16 bytes of overhead per object
3. Copy the value: From stack to the newly allocated heap space
4. Update GC tracking: Mark the allocation for future garbage collection

// What boxing REALLY costs
int value = 42;           // 4 bytes on stack
object boxed = value;     // 16+ bytes on heap + GC tracking

// The hidden costs:
// - Object header: 8 bytes (type info, sync block)
// - Method table pointer: 8 bytes
// - Actual int value: 4 bytes
// - Alignment padding: 0-4 bytes
// Total: 20-24 bytes for a 4-byte int!

Memory Layout Reality

Let me show you what this actually looks like in memory-this visualization helped me finally "get" the performance implications:

// Stack layout (fast, compact)
[Local variables - grows downward]
int x = 10;     // Address: 0x1000
int y = 20;     // Address: 0x0FFC
int z = 30;     // Address: 0x0FF8

// Heap layout after boxing (slower, scattered)
object boxedX = x;  // Heap address: 0x2A4F8120 (could be anywhere!)
object boxedY = y;  // Heap address: 0x2A4F8140 (20 bytes later)
object boxedZ = z;  // Heap address: 0x2A4F8160 (another 20 bytes later)

The stack variables are perfectly aligned and adjacent. The boxed versions are scattered around the heap with massive overhead. When I showed this diagram to my team lead five years ago, it was my "aha!" moment for understanding performance optimization.

Performance Analysis: The Numbers Don't Lie

Let me share some benchmarks I ran that completely changed how I write C#. These numbers are from a real production scenario where we were processing financial data:

// Benchmark: Processing 1 million integers

// Scenario 1: Boxing nightmare (legacy code)
var boxedList = new ArrayList();
var stopwatch = Stopwatch.StartNew();
for (int i = 0; i < 1_000_000; i++)
{
    boxedList.Add(i);  // Boxing on every add!
}
stopwatch.Stop();
// Result: 847ms, 24MB allocated, 156 GC collections

// Scenario 2: Generic collections (modern approach)
var genericList = new List<int>();
stopwatch.Restart();
for (int i = 0; i < 1_000_000; i++)
{
    genericList.Add(i);  // No boxing!
}
stopwatch.Stop();
// Result: 12ms, 4MB allocated, 1 GC collection

// Performance improvement: 70x faster, 6x less memory, 156x fewer GCs!

The Hidden Boxing Traps

Here are the scenarios that caught me off guard when I was learning. Some of these might surprise you:

// Obvious boxing - you can see it
object obj = 42;

// Sneaky boxing - string formatting
string message = $"Value is {42}";  // Boxing! Use {42:D} or ToString()

// Interface boxing - this one got me
IComparable comparable = 42;        // Boxing to interface

// Enum boxing - happens more than you think
enum Status { Active, Inactive }
object status = Status.Active;      // Boxing enum

// Collections boxing (pre-generics)
Hashtable hash = new Hashtable();
hash.Add("key", 42);               // Boxing the integer value

// Method parameters with object type
void LogValue(object value) { }
LogValue(42);                      // Boxing when called

// LINQ with non-generic collections
ArrayList list = new ArrayList { 1, 2, 3 };
var result = list.Cast<object>()   // Already boxed
                .Where(x => (int)x > 1); // Unboxing for comparison

Modern Solutions: How to Avoid Boxing

The good news? Modern C# gives us powerful tools to avoid boxing entirely:

// Generic collections - type-safe and fast
List<int> numbers = new List<int>();        // No boxing ever
Dictionary<string, int> lookup = new();     // Type-safe key-value pairs

// Span<T> for high-performance scenarios
Span<int> span = stackalloc int[100];       // Stack-allocated array
ReadOnlySpan<int> readOnly = numbers.AsSpan(); // Zero-copy view

// String interpolation without boxing
int value = 42;
string msg1 = $"Value: {value}";           // Boxing occurs
string msg2 = $"Value: {value:D}";         // No boxing with format specifier
string msg3 = "Value: " + value.ToString(); // Explicit, no boxing

// Memory<T> for async scenarios
Memory<byte> buffer = new byte[1024];       // Managed memory without boxing
ReadOnlyMemory<char> textBuffer = "Hello".AsMemory(); // Immutable view

// ArrayPool for reusable arrays
var pool = ArrayPool<int>.Shared;
int[] rentedArray = pool.Rent(1000);       // Reuse arrays, avoid allocations
// ... use the array ...
pool.Return(rentedArray);                   // Return for reuse

Practical Implementation

Basic Boxing Operations

Let's explore various ways boxing occurs in C#:

// Explicit boxing
int number = 42;
object boxedNumber = (object)number;

// Implicit boxing
IComparable comparable = number;

// Boxing through method calls
Console.WriteLine(number);  // Boxing occurs here!

Working with Nullable Types

Nullable types provide a boxing-free way to handle null values:

// No boxing occurs here
int? nullableNumber = 42;
nullableNumber = null;

// Safe operations
if (nullableNumber.HasValue)
{
    Console.WriteLine(nullableNumber.Value);
}

Performance Optimization

Measuring Boxing Impact

Here's a simple benchmark to demonstrate the performance impact:

public class BoxingBenchmark
{
    public static void Measure()
    {
        const int iterations = 1_000_000;
        var stopwatch = new Stopwatch();

        // Without boxing
        stopwatch.Start();
        int sum = 0;
        for (int i = 0; i < iterations; i++)
        {
            sum += i;
        }
        stopwatch.Stop();
        Console.WriteLine($"No boxing: {stopwatch.ElapsedMilliseconds}ms");

        // With boxing
        stopwatch.Restart();
        object boxedSum = 0;
        for (int i = 0; i < iterations; i++)
        {
            boxedSum = (int)boxedSum + i;  // Boxing on each iteration
        }
        stopwatch.Stop();
        Console.WriteLine($"With boxing: {stopwatch.ElapsedMilliseconds}ms");
    }
}

Memory Footprint

Boxing operations significantly increase memory usage due to object overhead:

| Data Type | Unboxed Size | Boxed Size | Size Increase |
|-----------|--------------|------------|---------------|
| bool      | 1 byte       | 24+ bytes  | ~24x          |
| int       | 4 bytes      | 24+ bytes  | ~6x           |
| long      | 8 bytes      | 24+ bytes  | ~3x           |
| decimal   | 16 bytes     | 40+ bytes  | ~2.5x         |

This substantial increase in memory usage highlights why avoiding unnecessary boxing operations is crucial for performance-sensitive applications, especially when dealing with large collections or memory-constrained environments.

Best Practices

Do's and Don'ts

Do's

• Use generic collections (List<int> instead of ArrayList)
• Implement IEquatable<T> for custom value types
• Use nullable value types when null is needed
• Profile your application for boxing hotspots

Don'ts

• Avoid boxing in tight loops
• Don't use non-generic collections for value types
• Avoid unnecessary interface implementations on structs
• Don't use object parameters when specific types can be used

Optimizing Collections

// Bad practice - causes boxing
ArrayList numbers = new ArrayList();
numbers.Add(42);  // Boxes the int

// Good practice - no boxing
List<int> numbers = new List<int>();
numbers.Add(42);  // No boxing occurs

// Best practice for performance-critical code
Span<int> numbers = stackalloc int[100];

Advanced Scenarios

Custom Value Types

Creating efficient custom value types:

public readonly struct Money : IEquatable<Money>
{
    private readonly decimal amount;

    public Money(decimal amount) => this.amount = amount;

    // Implement IEquatable<T> to avoid boxing
    public bool Equals(Money other) => amount == other.amount;

    // Override object.Equals
    public override bool Equals(object obj) =>
        obj is Money other && Equals(other);

    // Always override GetHashCode with Equals
    public override int GetHashCode() => amount.GetHashCode();

    // Operator overloading for natural syntax
    public static Money operator +(Money a, Money b) =>
        new Money(a.amount + b.amount);
}

Generic Constraints

Using constraints to prevent boxing:

// This constraint ensures T is a value type
public class ValueTypeProcessor<T> where T : struct
{
    public T Process(T value)
    {
        // No boxing occurs here
        return value;
    }
}

Final Thoughts

Boxing and unboxing are essential concepts in C# that can significantly impact your application's performance. By understanding these operations and following best practices, you can write more efficient and maintainable code.

Quick Reference Card

graph TD
    A[Value Type] -->|Boxing| B[Reference Type]
    B -->|Unboxing| A
    C[Performance Impact] --> D[Memory Usage]
    C --> E[CPU Cycles]
    F[Best Practices] --> G[Use Generics]
    F --> H[Avoid Boxing in Loops]
    F --> I[Profile Code]

Remember: Boxing is not inherently bad, but unnecessary boxing in performance-critical code should be avoided. Always profile your application to identify where boxing might be causing performance issues.
